PITCH： 2.5mm

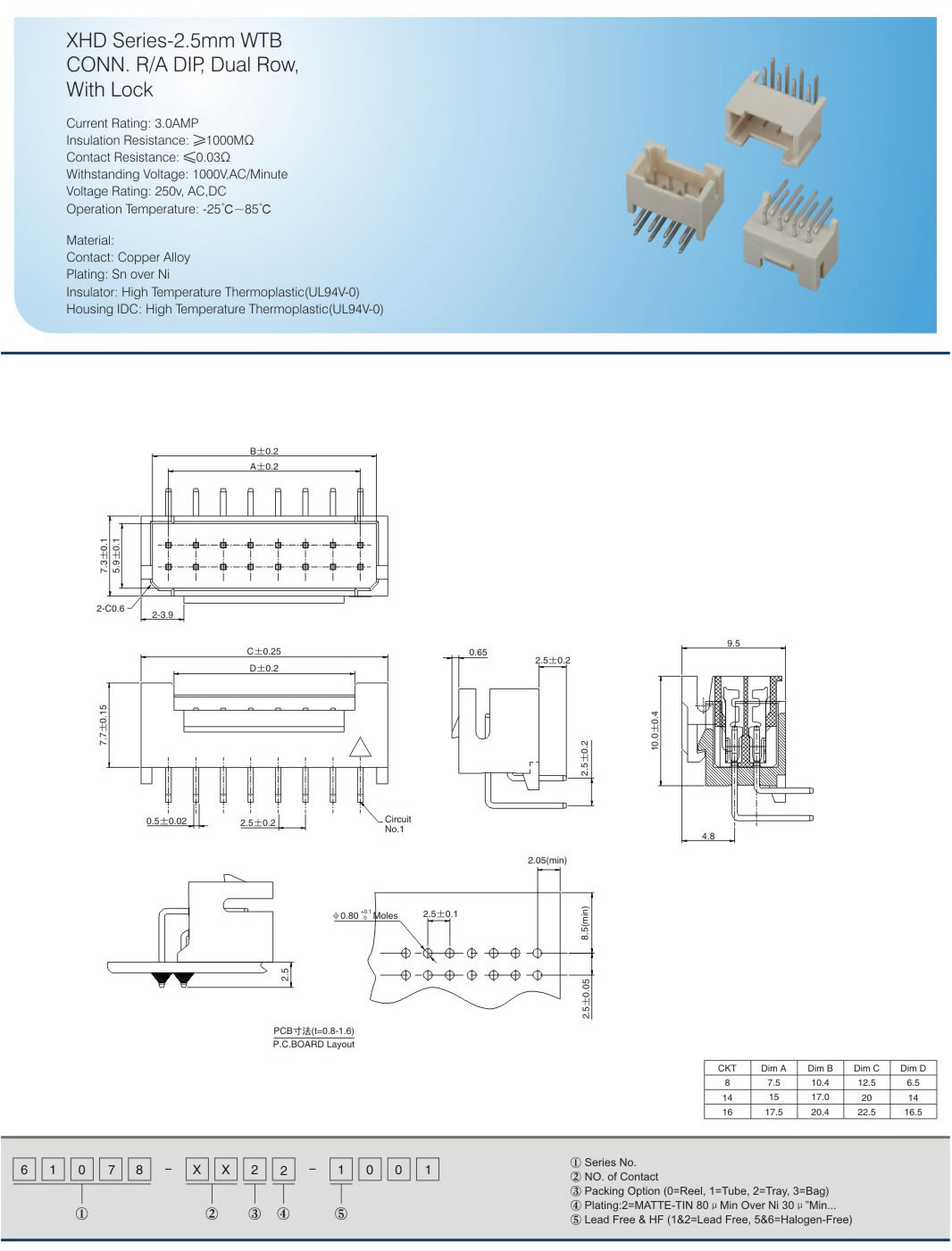

XHD Series-2.5mm WTB
CONN.R/A DIP, Dual Row,
With Lock
Current Rating: 3.0AMP
Insulation Resistance: ≥1000MΩ
Contact Resistance:≤0.03Ω
Withstanding Voltage: 1000V,AC/Minute
Voltage Rating: 250v, AC,DC
Operation Temperature:-25℃-85c
Material:
Contact: Copper Alloy
Plating: Sn over Ni
Insulator: High Temperature Thermoplastic(UL94V-O)Housing IDC:
High Temperature Thermoplastic(UL94V-0)
